الدفع نوع:L/C,T/T,D/P,D/A,Paypal
إنكوترم:FOB,CFR,CIF
أدني كمية الطلب:1 Piece/Pieces
نقل:Ocean,Land,Air
$0.1-1 /Piece/Pieces
علامة تجارية: HY أو تصنيع المعدات الأصلية
فترة الضمان: 3 سنوات
انواع من: صمامات الكرة
تخصيص الدعم: OEM
مكان المنشأ: الصين
طلب: عام
درجة حرارة متوسطة: درجة الحرارة العادية
قوة: هيدروليكي
متوسطة التدفق: ماء, بترول, حامض
بنية: كرة
نقل: Ocean,Land,Air
الدفع نوع: L/C,T/T,D/P,D/A,Paypal
إنكوترم: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

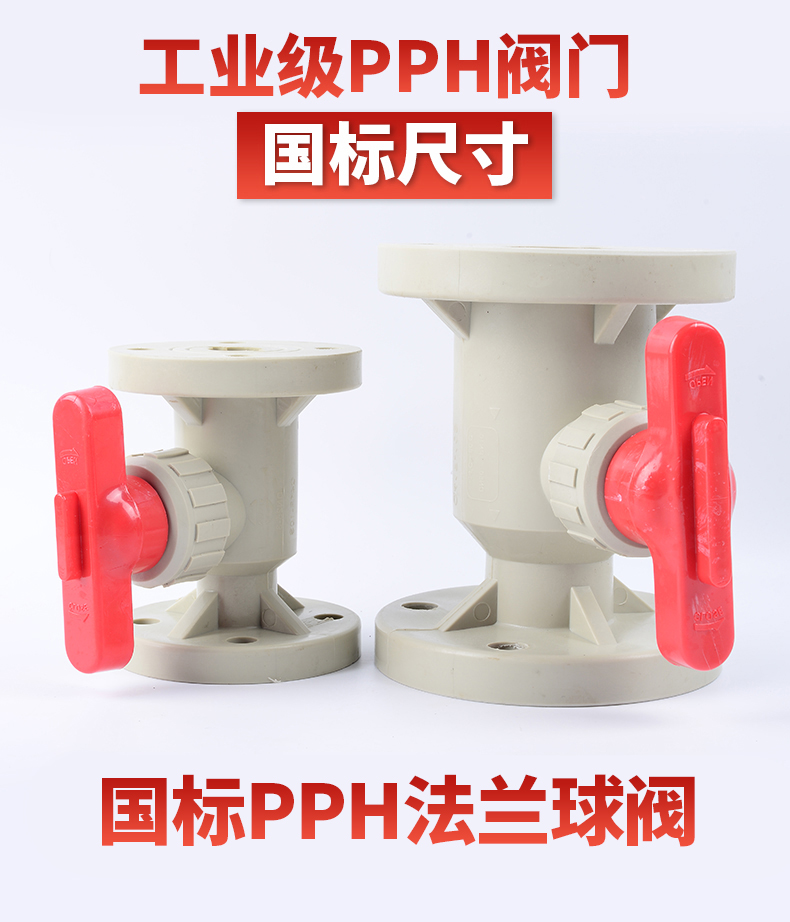

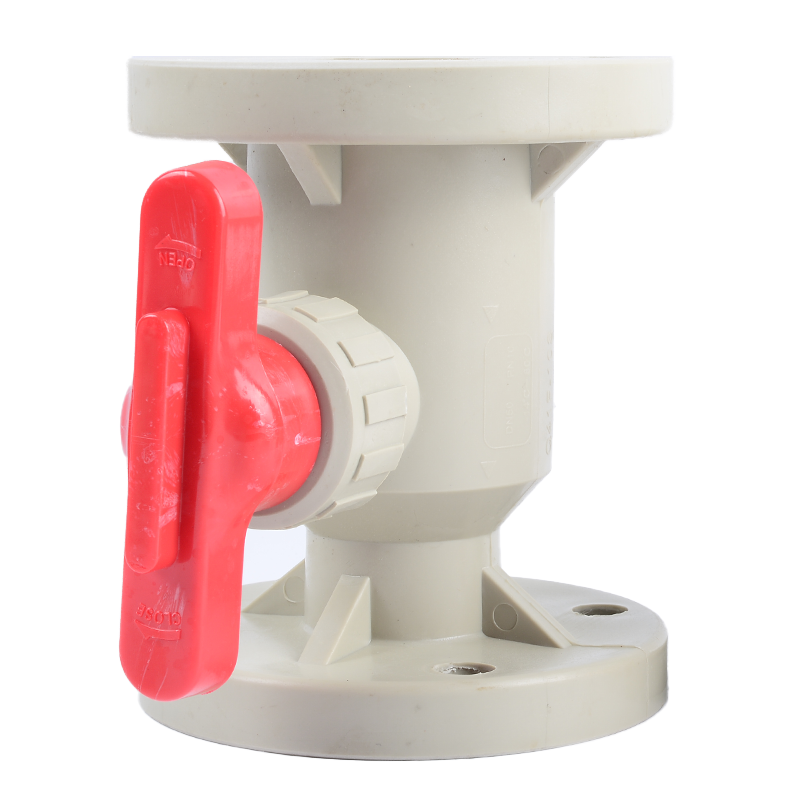

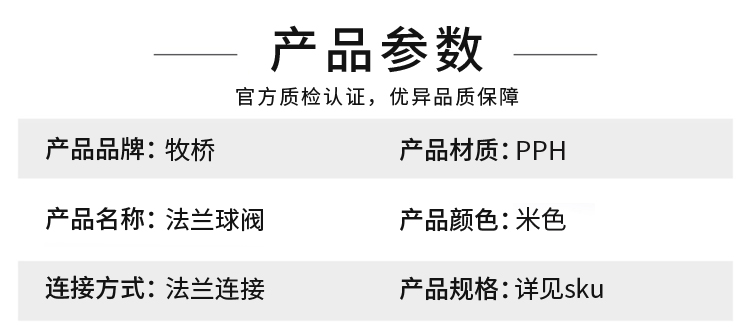

| Key Word: | PPH Flanged Ball Valve DN25 to DN200 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PPH | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
| PPH Flanged Ball Valve Parts&Material | ||
No. |
Parts |
Materials |
| 1 | Body | PPH |
| 2 | Ballseal | PTFE |
| 3 | Ball | PPH |
| 4 | Inner plug | PPH |
| 5 | Stem seal | PTFE |
| 6 | locator | PPH |
| 7 | Compression nut | PPH |
| 8 | Stem | PPH |
| 6 | Handle | ABS |

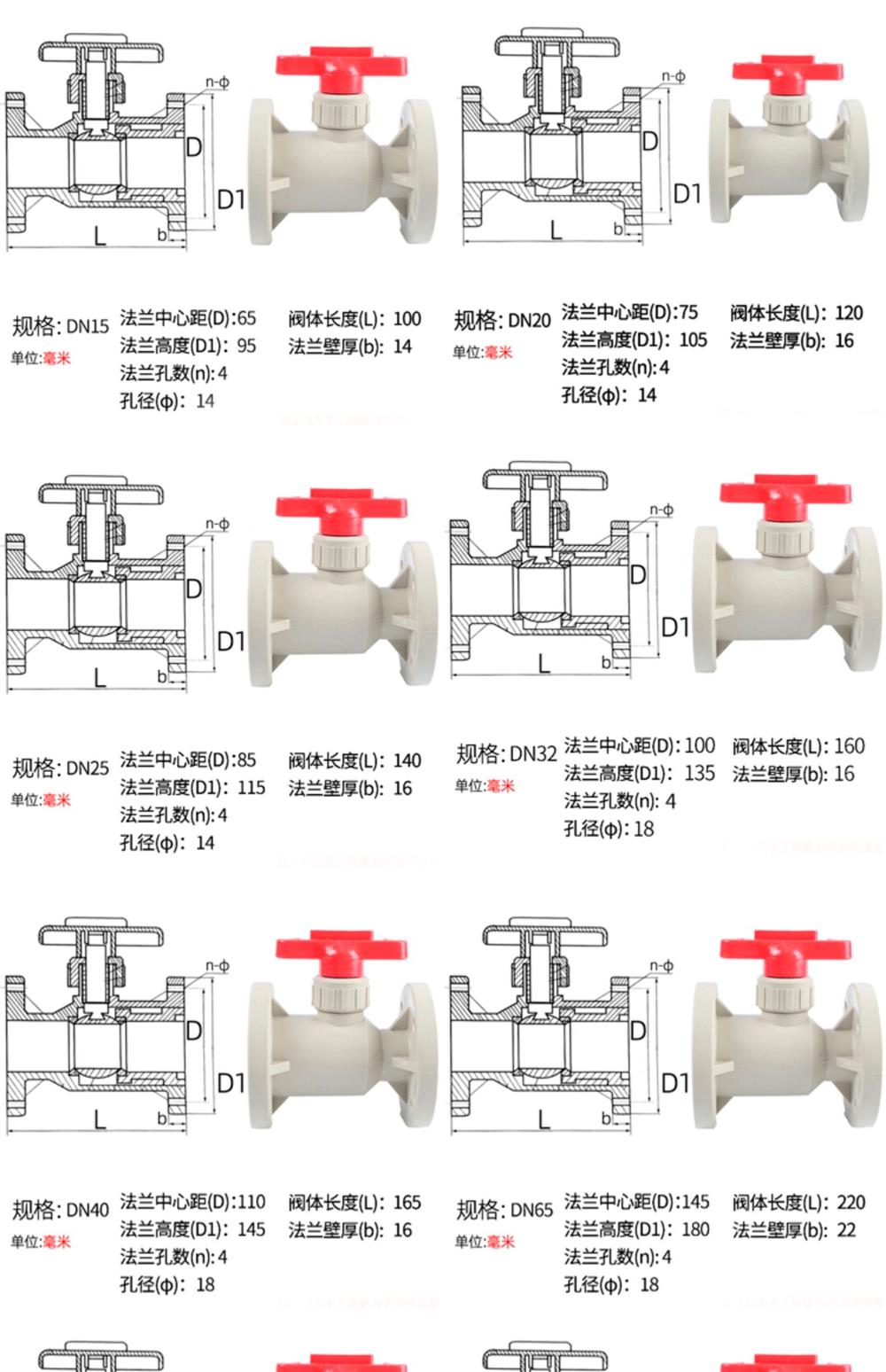

| PPH DIN Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| DIN | HG/DIN | HG/DIN | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 65 | 100 | 15 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 75 | 120 | 17 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 85 | 140 | 17 | 4 | 14 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 100 | 160 | 18 | 4 | 18 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 110 | 165 | 18 | 4 | 18 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 125 | 180 | 20 | 4 | 18 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 145 | 220 | 22 | 4 | 18 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 160 | 250 | 25 | 8 | 18 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 180 | 280 | 25 | 8 | 18 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 210 | 325 | 28 | 8 | 18 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 240 | 365 | 30 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 295 | 405 | 35 | 8 | 22 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 350 | 500 | 38 | 12 | 22 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 400 | 600 | 40 | 12 | 22 | 0.3 | 0.3 | 0.3 |
| PPH JIS Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| JIS | JIS | JIS | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 70 | 100 | 15 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 75 | 120 | 17 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 90 | 140 | 17 | 4 | 15 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 100 | 160 | 18 | 4 | 19 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 105 | 165 | 18 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 120 | 180 | 20 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 150 | 250 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 175 | 280 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 210 | 325 | 28 | 8 | 19 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 240 | 365 | 30 | 8 | 23 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 290 | 405 | 35 | 12* | 23 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 355 | 500 | 38 | 12 | 25 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 400 | 600 | 40 | 16* | 25 | 0.3 | 0.3 | 0.3 |
| PPH ANSI Flanged Ball Valve Dimensions Table | |||||||||
| DN | D1 (mm) |
D(mm) | L(mm) | h(mm) | n | φ(mm) | (Mpa)working pressure | ||
| ANSI | ANSI | ANSI | FRPP/PPH | UPVC/CPVC | PVDF | ||||
| 15 | 95 | 60 | 100 | 15 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 20 | 105 | 70 | 120 | 17 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 25 | 115 | 79 | 140 | 17 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 32 | 135 | 89 | 160 | 18 | 4 | 16 | 1.0 | 1.6 | 1.6 |
| 40 | 145 | 98 | 165 | 18 | 4 | 16 | 1.0 | 1.0 | 1.6 |
| 50 | 160 | 121 | 180 | 20 | 4 | 19 | 1.0 | 1.0 | 1.6 |
| 65 | 180 | 140 | 220 | 22 | 4 | 19 | 1.0 | 1.0 | 1.0 |
| 80 | 195 | 152 | 250 | 25 | 4* | 19 | 1.0 | 1.0 | 1.0 |
| 100 | 215 | 190 | 280 | 25 | 8 | 19 | 1.0 | 1.0 | 1.0 |
| 125 | 245 | 216 | 325 | 28 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 150 | 280 | 241 | 365 | 30 | 8 | 22 | 0.6 | 0.6 | 1.0 |
| 200 | 335 | 298 | 405 | 35 | 8 | 22 | 0.3 | 0.3 | 0.6 |
| 250 | 400 | 362 | 500 | 38 | 12 | 26 | 0.3 | 0.3 | 0.4 |
| 300 | 455 | 432 | 600 | 40 | 12 | 26 | 0.3 | 0.3 | 0.3 |
