الدفع نوع:L/C,T/T,D/P,D/A,Paypal
إنكوترم:FOB,CFR,CIF
أدني كمية الطلب:1
نقل:Ocean,Land,Air
$0.1-1 /
علامة تجارية: HY أو تصنيع المعدات الأصلية
نموذج: RPV162
شهادة: SGS
Shape: Equal
Head Code: Square
معيار: DIN, ANSI, JIS
جسم: الزجاج البورسليكات
اتصال: آخر
نقل: Ocean,Land,Air
الدفع نوع: L/C,T/T,D/P,D/A,Paypal
إنكوترم: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | CPVC Sight Glass Flange Connection For Corrosive Liquid | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

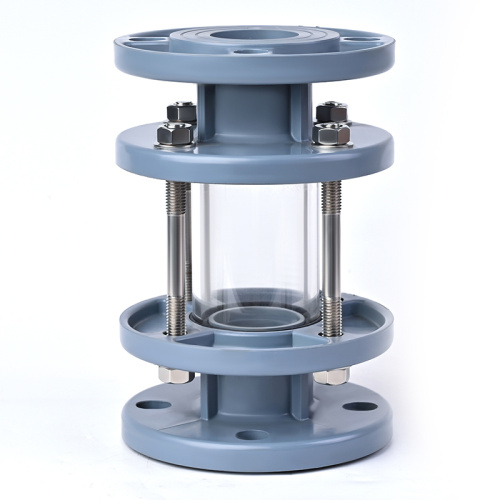

إن وصلة الحافة الزجاجية CPVC الخاصة بنا هي الخيار الصناعي لمراقبة السوائل! زجاج رؤية متين مع حافة، هذا النوع من حافة زجاج الرؤية يتميز بشفة زجاجية رؤية قوية للتركيب الآمن. توفر أنابيب CPVC عالية الجودة مقاومة كبيرة للحرارة/الكيماويات، وعدسة شفافة مقاومة للكسر لفحص التدفق في الوقت الفعلي - سهلة التركيب/الصيانة للنقل الصناعي وخطوط الأنابيب الكيميائية.
| CPVC Inspection Glass Parts&Material | ||
No. |
Parts |
Materials |
| l | Inspection glass flange | CPVC |
| 2 | Tube sealing | EPDM,FPM,PTFE |
| 3 | Glass | Glass |
| 4 | Stud Bolt | Steel,Stainless Steel |
| 5 | Nut | Steel,Stainless Steel |
| CPVC DIN Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| DIN | HG/DIN | HG/DIN | |||||
| 25 | 115 | 85 | 235 | 16 | 4 | 14 | 0.6 |
| 32 | 135 | 100 | 235 | 16 | 4 | 18 | 0.6 |
| 40 | 145 | 110 | 235 | 16 | 4 | 18 | 0.6 |
| 50 | 160 | 125 | 235 | 16 | 4 | 18 | 0.6 |
| 65 | 180 | 145 | 235 | 18 | 4 | 18 | 0.6 |
| 80 | 195 | 160 | 235 | 18 | 8 | 18 | 0.6 |
| 100 | 215 | 180 | 235 | 20 | 8 | 18 | 0.6 |
| 125 | 245 | 210 | 315 | 20 | 8 | 18 | 0.3 |
| 150 | 280 | 240 | 370 | 20 | 8 | 22 | 0.3 |
| 200 | 340 | 295 | 385 | 25 | 8 | 22 | 0.3 |
| 250 | 405 | 350 | 420 | 28 | 12 | 22 | 0.3 |
| CPVC JIS Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| JIS | JIS | JIS | |||||
| 25 | 115 | 90 | 235 | 16 | 4 | 15 | 0.6 |
| 32 | 135 | 100 | 235 | 16 | 4 | 19 | 0.6 |
| 40 | 145 | 105 | 235 | 16 | 4 | 19 | 0.6 |
| 50 | 160 | 120 | 235 | 16 | 4 | 19 | 0.6 |
| 65 | 180 | 140 | 235 | 18 | 4 | 19 | 0.6 |
| 80 | 195 | 150 | 235 | 18 | 8 | 19 | 0.6 |
| 100 | 215 | 175 | 235 | 20 | 8 | 19 | 0.6 |
| 125 | 245 | 210 | 315 | 20 | 8 | 19 | 0.3 |
| 150 | 280 | 240 | 370 | 20 | 8 | 23 | 0.3 |
| 200 | 340 | 290 | 385 | 25 | 12* | 23 | 0.3 |
| 250 | 405 | 355 | 420 | 28 | 12 | 25 | 0.3 |
| CPVC ANSI Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| ANSI | ANSI | ANSI | |||||
| 25 | 115 | 79 | 235 | 16 | 4 | 16 | 0.6 |
| 32 | 135 | 89 | 235 | 16 | 4 | 16 | 0.6 |
| 40 | 145 | 98 | 235 | 16 | 4 | 16 | 0.6 |
| 50 | 160 | 121 | 235 | 16 | 4 | 19 | 0.6 |
| 65 | 180 | 140 | 235 | 18 | 4 | 19 | 0.6 |
| 80 | 195 | 152 | 235 | 18 | 4* | 19 | 0.6 |
| 100 | 215 | 190 | 235 | 20 | 8 | 19 | 0.6 |
| 125 | 245 | 216 | 315 | 20 | 8 | 22 | 0.3 |
| 150 | 280 | 241 | 370 | 20 | 8 | 22 | 0.3 |
| 200 | 340 | 298 | 385 | 25 | 8 | 22 | 0.3 |
| 250 | 405 | 362 | 420 | 28 | 12 | 26 | 0.3 |
