الدفع نوع:L/C,T/T,D/P,D/A,Paypal
إنكوترم:FOB,CFR,CIF
أدني كمية الطلب:1 Piece/Pieces
نقل:Ocean,Land,Air
$0.1-1 /Piece/Pieces
علامة تجارية: HY أو تصنيع المعدات الأصلية
Material: Pvc
عطوف: أنابيب البلاستيك الحرارية
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
قوة الشد: （30 ~ 40） MPA
Temperature: 0 To 70 Degree Celsius
اللون: رمادي داكن
Pressure: SCH80
مكان المنشأ: الصين
خدمة الضمان: 3 سنوات
علامة تجارية: HY or Oem
نقل: Ocean,Land,Air
الدفع نوع: L/C,T/T,D/P,D/A,Paypal
إنكوترم: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

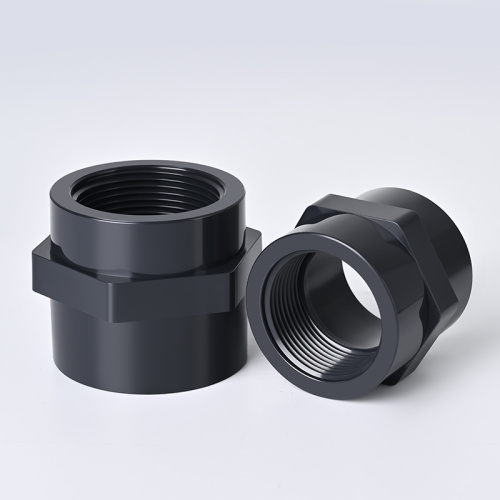

| Key Word: | PVC Female Coupling SCH80 | ||||
| Connect Type: | Cement-Glue-Socket | ||||
| Brand: | HUIYA or OEM | ||||
| Material: | PVC(PVC-U) | ||||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | |||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | |||||
| Color: | Grey | ||||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | ||||
| Working pressure: | PN16(1.6Mpa) | ||||
| Working temperature: | 0 To 70 Degree Celsius | ||||
| Production Process: | Mold Injected | ||||
| Packing: | Cartons | ||||
| Advantage: | 1.100% virgin PVC material | ||||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | |||||
| 3.Strictly produced according to ISO standard | |||||
| 4.Long lifetime | |||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | |||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | ||||
| HS Code: | 391740 | ||||
| Certificate: | SGS | ||||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | ||||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | |||||
يعد فهم الفروق الفنية في التعامل مع السوائل أمرًا أساسيًا لنجاح المشروع. ولهذا السبب نقدم مقارنات تفصيلية مثل UPVC Van Stone Flange مقابل One-Piece Flange لمساعدة المهندسين على اختيار السلامة الهيكلية المناسبة لتقييمات الضغط المحددة الخاصة بهم. في حين أن حواف Van Stone توفر محاذاة أسهل لفتحات الترباس، فإن تصميماتنا المكونة من قطعة واحدة توفر بنية قوية ومتجانسة مثالية للتركيبات الدائمة عالية الضغط.
| SCH80 UPVC female adapter dimensions chart (Unit: mm) | ||||||||
| Nominal | Outside Dia | Socket Type | Structural Diameter | |||||
| SIZE | D (mm/inch) | d1 (mm/inch) | d2 (mm/inch) | I (mm/inch) | d (mm/inch) | L (mm/inch) | NPT(牙/寸) | |
| DN15 | 1/2"UPVC female adapter | 30.0 / 1.18 | 21.54 / 0.85 | 21.23 / 0.84 | 23.0 / 0.91 | 18.0 / 0.71 | 44.0 / 1.73 | 14 |
| DN20 | 3/4"UPVC female adapter | 35.0 / 1.38 | 26.87 / 1.06 | 26.57 / 1.05 | 26.0 / 1.02 | 23.0 / 0.91 | 50.0 / 1.97 | 14 |
| DN25 | 1"UPVC female adapter | 43.0 / 1.69 | 33.65 / 1.32 | 33.27 / 1.31 | 29.0 / 1.14 | 29.0 / 1.14 | 55.0 / 2.17 | 11.5 |
| DN32 | 1-1/4"UPVC female adapter | 52.5 / 2.07 | 42.42 / 1.67 | 42.04 / 1.65 | 32.0 / 1.26 | 37.0 / 1.46 | 62.0 / 2.44 | 11.5 |
| DN40 | 1-1/2"UPVC female adapter | 59.0 / 2.32 | 48.56 / 1.91 | 48.11 / 1.90 | 36.0 / 1.42 | 43.0 / 1.70 | 67.0 / 2.64 | 11.5 |
| DN50 | 2"UPVC female adapter | 72.0 / 2.83 | 60.63 / 2.39 | 60.17 / 2.37 | 38.5 / 1.52 | 54.0 / 2.13 | 73.0 / 2.87 | 11.5 |
| DN65 | 2-1/2"UPVC female adapter | 88.0 / 3.46 | 73.38 / 2.89 | 72.85 / 2.87 | 45.0 / 1.77 | 64.0 / 2.52 | 81.2 / 3.20 | 8 |
| DN80 | 3"UPVC female adapter | 105.3 / 4.15 | 89.31 / 3.52 | 88.70 / 3.50 | 48.5 / 1.91 | 77.0 / 3.03 | 86.7 / 3.41 | 8 |
| DN100 | 4"UPVC female adapter | 132.5 / 5.22 | 114.76 / 4.52 | 114.10 / 4.50 | 58.5 / 2.30 | 96.0 / 3.78 | 98.5 / 3.88 | 8 |
