الدفع نوع:L/C,T/T,D/P,D/A,Paypal
إنكوترم:FOB,CFR,CIF
أدني كمية الطلب:1
نقل:Ocean,Land,Air
$0.1-1 /
علامة تجارية: HY أو تصنيع المعدات الأصلية
خدمة الضمان: 3 سنوات
مكان المنشأ: الصين
Connection: Welding
Pressure: 1.6Mpa
علامة تجارية: HY or Oem
مواد: UPVC
Temperature: -15 to 55 Degree Celsius
Hardness: Hard Tube
اللون: رمادي داكن
نقل: Ocean,Land,Air
الدفع نوع: L/C,T/T,D/P,D/A,Paypal
إنكوترم: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

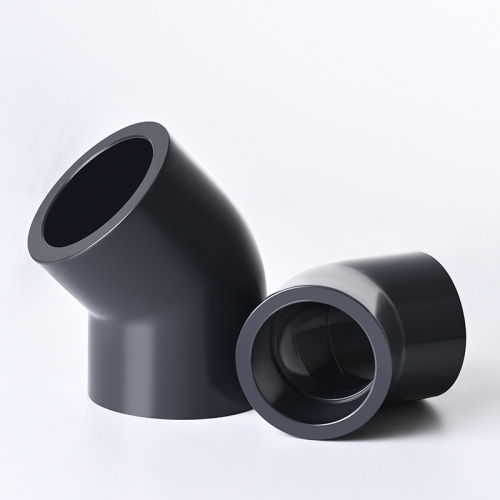

| Key Word: | UPVC 45 Degree Elbow Astm Sch80 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | 1/2",3/4",1,1-1/4",1-1/2",2",2-1/2",3",4",5",6",8",10",12",14"（inch） | ||
| Color: | Grey | |||
| Standard: | ASTM D2467, Schedule80（SCH80）, Schedule40（SCH40） | |||
| Working pressure: | SCH80/SCH40 | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

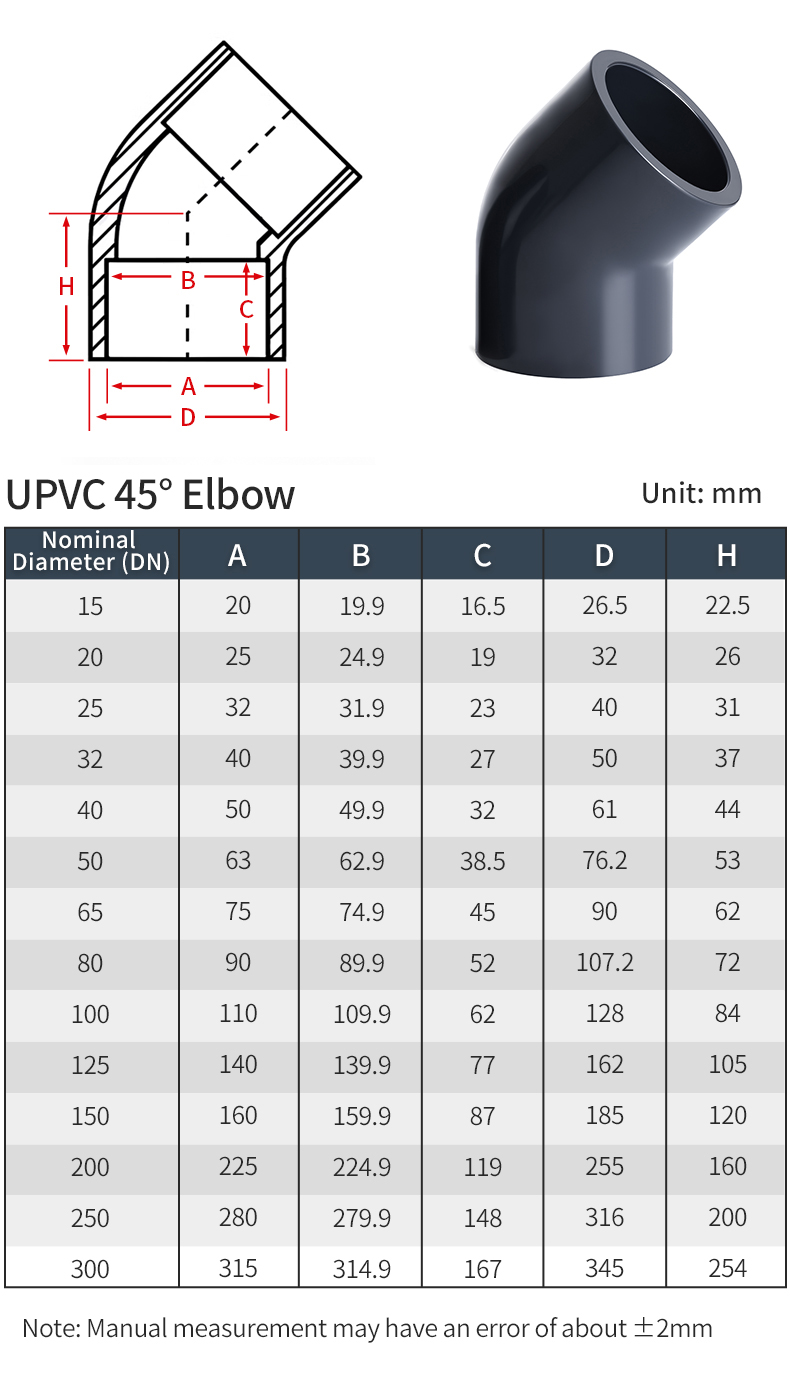

| SCH80 UPVC 45°elbow dimensions chart (Unit: mm) | |||||||
| Nominal | Socket Type | Structural Diameter | |||||
| SIZE | d1 (mm/inch) | d2 (mm/inch) | I (mm/inch) | D (mm/inch) | d (mm/inch) | H (mm/inch) | |
| DN15 | 1/2"UPVC 45°elbow | 21.54 / 0.85 | 21.23 / 0.84 | 23.0 / 0.91 | 29.2 / 1.15 | 16.0 / 0.63 | 30.2 / 1.19 |
| DN20 | 3/4"UPVC 45°elbow | 26.87 / 1.06 | 26.57 / 1.05 | 26.0 / 1.02 | 34.9 / 1.37 | 22.0 / 0.87 | 36.2 / 1.43 |
| DN25 | 1"UPVC 45°elbow | 33.65 / 1.32 | 33.27 / 1.31 | 29.0 / 1.14 | 43.0 / 1.69 | 30.0 / 1.18 | 41.0 / 1.61 |
| DN32 | 1-1/4"UPVC 45°elbow | 42.42 / 1.67 | 42.04 / 1.65 | 33.0 / 1.30 | 52.3 / 2.06 | 38.0 / 1.50 | 46.4 / 1.83 |
| DN40 | 1-1/2"UPVC 45°elbow | 48.56 / 1.91 | 48.11 / 1.90 | 36.0 / 1.42 | 61.0 / 2.40 | 43.0 / 1.70 | 52.3 / 2.06 |
| DN50 | 2"UPVC 45°elbow | 60.63 / 2.39 | 60.17 / 2.37 | 39.0 / 1.54 | 75.0 / 2.95 | 54.0 / 2.13 | 59.8 / 2.35 |
| DN65 | 2-1/2"UPVC 45°elbow | 73.38 / 2.89 | 72.85 / 2.87 | 45.0 / 1.77 | 89.5 / 3.52 | 67.0 / 2.64 | 70.0 / 2.76 |
| DN80 | 3"UPVC 45°elbow | 89.31 / 3.52 | 88.70 / 3.50 | 48.0 / 1.89 | 107.5 / 4.23 | 82.0 / 3.23 | 78.3 / 3.08 |
| DN100 | 4"UPVC 45°elbow | 114.76 / 4.52 | 114.10 / 4.50 | 58.0 / 2.28 | 132.0 / 5.20 | 106.0 / 4.17 | 96.3 / 3.79 |
| DN125 | 5"UPVC 45°elbow | 141.81 / 5.58 | 141.00 / 5.55 | 76.0 / 3.00 | 167.0 / 6.57 | 133.0 / 5.24 | 108.0 / 4.25 |
| DN150 | 6"UPVC 45°elbow | 168.83 / 6.65 | 168.00 / 6.61 | 76.0 / 3.00 | 190.8 / 7.51 | 163.0 / 6.42 | 117.8 / 4.64 |
| DN200 | 8"UPVC 45°elbow | 219.84 / 8.65 | 218.70 / 8.61 | 102.0 / 4.02 | 245.3 / 9.66 | 212.0 / 8.35 | 153.8 / 6.06 |
| DN250 | 10"UPVC 45°elbow | 273.81 / 10.78 | 272.67 / 10.74 | 129.0 / 5.08 | 305.8 / 12.04 | 262.5 / 10.33 | 188.0 / 7.40 |
| DN300 | 12"UPVC 45°elbow | 324.61 / 12.78 | 323.47 / 12.74 | 172.0 / 6.77 | 364.0 / 14.33 | 300.0 / 11.81 | 242.8 / 9.56 |
