علامة تجارية: HY أو تصنيع المعدات الأصلية
نموذج لا.: F1E1S01
Material: PVC
عطوف: أنابيب البلاستيك الحرارية
Water Absorption: ＜0.01%
Contraction: 1.0%~2.5%
قوة الشد: （30 ~ 40） MPA
اللون: رمادي داكن
Pressure: 1.6Mpa
Temperature: -15 to 55 Degree Celsius
نقل: Ocean,Air
الدفع نوع: L/C,T/T,D/P,D/A,Paypal
إنكوترم: FOB,CFR,CIF

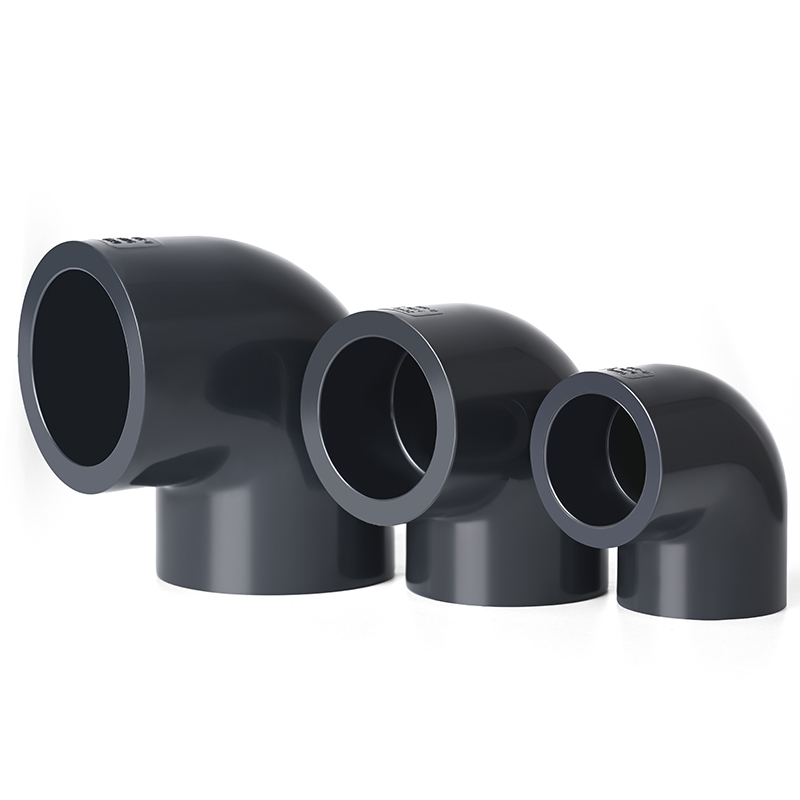

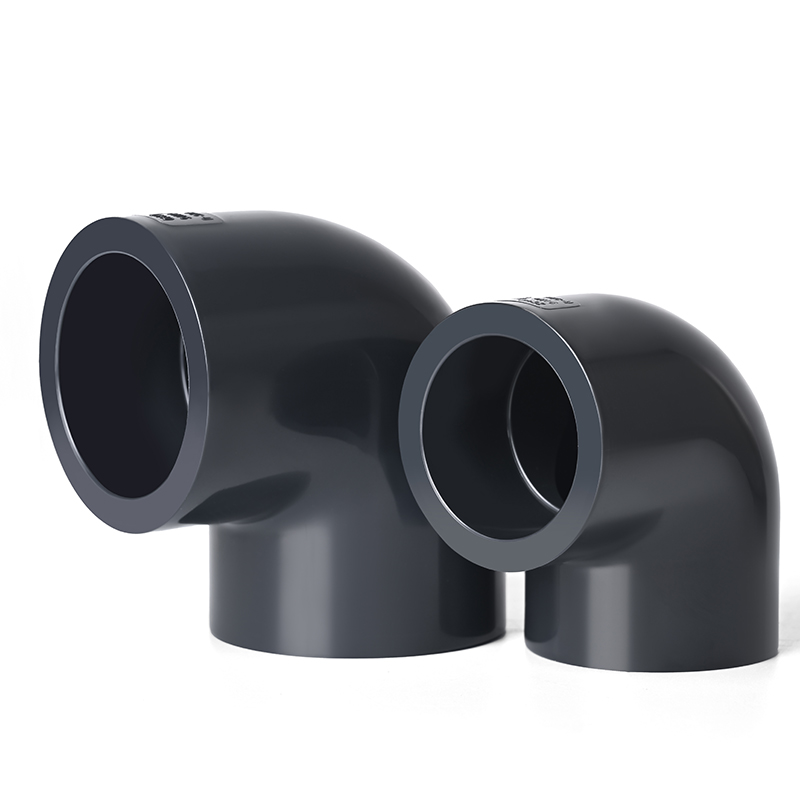

يتراوح حجم كوع تركيب الأنابيب Upvc 90 درجة من 20 مم إلى 400 مم مع ضغط بمقدار 1.6 ميجا باسكال. تركيب أنابيب Upvc Din Pn16 يتمتع بخاصية جيدة لمقاومة التآكل، وخفيف الوزن، وسهولة التركيب والصيانة، والتكلفة المنخفضة، وما إلى ذلك. يمكن استخدام تركيب أنابيب Upvc في الصناعات الكيميائية، ومعالجة المياه، وإمدادات المياه، وما إلى ذلك.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | High Quality PVC 90 Degree Elbow DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
| PN16 PVC 90 Degree Elbow dimensions chart (Unit: mm) | |||||||
| SIZE | Inner diameter | Outer diameter | Thickness | L1(mm) | L2(mm) | Price/piece | |
| d(mm) | D(mm) | (mm) | |||||
| DN15 | 20mm pvc elbow | 20.3 | 26.3 | 3 | 16.5 | 41.25 | 0.06 |
| DN20 | 25mm pvc elbow | 25.3 | 31.9 | 3.3 | 19 | 49.1 | 0.09 |
| DN25 | 32mm pvc elbow | 32.35 | 39.95 | 3.8 | 22.5 | 60.7 | 0.16 |
| DN32 | 40mm pvc elbow | 40.4 | 49.8 | 4.7 | 26.5 | 72.87 | 0.26 |
| DN40 | 50mm pvc elbow | 50.45 | 60.25 | 4.9 | 31.5 | 88 | 0.41 |
| DN50 | 63mm pvc elbow | 63.5 | 75.9 | 6.2 | 38 | 108.82 | 0.78 |
| DN65 | 75mm pvc elbow | 75.5 | 88.91 | 6.7 | 44 | 127.47 | 1.23 |
| DN80 | 90mm pvc elbow | 90.55 | 105.15 | 7.3 | 51.5 | 150.65 | 1.89 |
| DN100 | 110mm pvc elbow | 110.6 | 127.39 | 8.4 | 61.5 | 181.66 | 3.14 |
| DN125 | 140mm pvc elbow | 140.6 | 161.4 | 10.4 | 76 | 228.09 | 7.13 |
| DN150 | 160mm pvc elbow | 160.7 | 184.5 | 11.9 | 86.5 | 260.52 | 10.31 |
| DN200 | 225mm pvc elbow | 226.2 | 253.8 | 13.8 | 118.5 | 360.29 | 22.52 |
| DN250 | 280mm pvc elbow | 281.5 | 314.8 | 16.7 | 147 | 440 | 85.41 |
| DN300 | 315mm pvc elbow | 316.7 | 344.5 | 13.9 | 165 | 495 | 99.81 |
| DN350 | 355mm pvc elbow | 356.3 | 386.2 | 15 | 183.5 | 558 | 150.44 |
| DN400 | 400mm pvc elbow | 402 | 432.7 | 15.4 | 208 | 620 | 198.97 |
| Industry Type PVC 90 Deg Elbow PN16 Packing Table | ||||||
| Description | Size | Packing (Qty) | Weight (g/pcs) | Length (mm) | Width (mm) | Height (mm) |
| Elbow 90° | DN15(φ20) | 1280 | 18.64 | 480 | 360 | 360 |
| DN20(φ25) | 760 | 29.11 | 480 | 360 | 360 | |
| DN25(φ32) | 400 | 50.39 | 480 | 360 | 360 | |
| DN32(φ40) | 225 | 87.13 | 480 | 360 | 360 | |
| DN40(φ50) | 128 | 150.67 | 495 | 360 | 375 | |
| DN50(φ63) | 75 | 268.67 | 545 | 375 | 435 | |
| DN65(φ75) | 48 | 407.22 | 470 | 440 | 410 | |
| DN80(φ90) | 24 | 627.64 | 450 | 430 | 310 | |
| DN100(φ110) | 20 | 1080.00 | 505 | 505 | 365 | |
| DN125(φ140) | 12 | 2108.55 | 475 | 475 | 450 | |
| DN150(φ160) | 6 | 3085.53 | 570 | 275 | 540 | |
| DN200(φ225) | 2 | 6600 | 518 | 375 | 365 | |
